dl2_009_Coin counter does not work

1．Does the credit on the screen increase?

If it increases,
check the wiring between the analog counter and I/O board.
The analog counter is the J9 2 pin-connector on the I/O board.

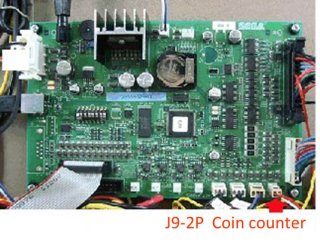

Picture: Location of the J9 connector

If it does not increase, see "Credit does not increase."
See here for details.

Reference : Page 32 of the Support Manual「コインカウンター(メーター)が動かない」

※You can browse the Support Manual in the PDF compatible environment only.
