dl2_800a02_Avanti (I/O board wiring)

*Be sure to unplug the power cable when making an alteration around the electrical objects to avoid the risk of electrical shock.

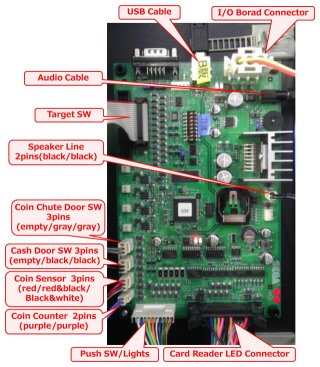

Wiring to the I/O board kit

Wire as shown above.
Be aware that there are three kinds of 3-pin connectors and two kinds of 2-pin connectors.

The colors of the harnesses shown in the picture are just an example.
They may vary depnding on the types of your machine.

Last updated on December 25, 2018
